| Brand Name : | Shenzhen |
| Model Number : | CL-C4-30W |
| Certification : | SAA TUV ERP GS CB CE ROHS |
| Delivery Time : | 5-10 working days below 1000pcs |
| Payment Terms : | T/T, L/C, Paypal, West Union |
| Supply Ability : | 1000000pcs one month |
Application :
* Hotels, Display, Shopping Mall,
* Gym, Underground Parking,
* Corridors, Exhibitions, Clubs,
* Family illumination and other indoor lighting.
Dimension : (Unit :mm)
Technical specification:
A: Electrical Data
No. | Item | Description | |
1 | Dimension | 138x100mm | |
2 | Construction Hole Size | 125mm | |
3 | Voltage | AC85-265V | |
4 | Current Frequency | 50/60 Hz | |
5 | Power | 30 W | |
6 | LED Type&Qty | 1pcs Sharp COB2024 | |
7 | Beam Angle | 15 25 35 60 degree | |
8 | Color Temp. | Warm white | 3000 |
Naturalwhite | 4000 | ||
Cool white | 5000 | ||
9 | Lumen | Warm white | >2800lm |
Neutral white | >2800lm | ||
Cool white | >2800lm | ||
10 | Color Rendering Index | >80 | |
11 | Material | The acrylic lens,Housing:Aluminum 1070 | |
12 | Operating temperature | -20～+50 | |
13 | Humidity | 20-85% | |
14 | certificate | CE,RoHS | |
15 | Luminaires Class | Ⅲ | |
16 | Net Weight | 0.8kg | |

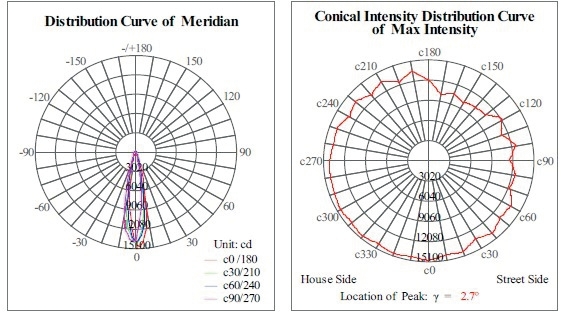

B: Light Distribution Curve & Max CD Distribution Curve

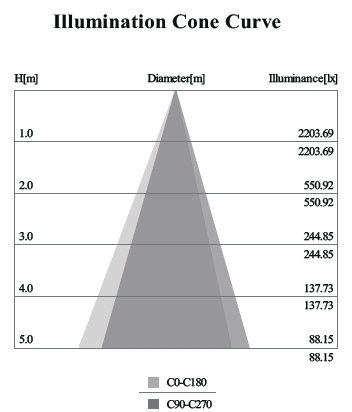

C: Illumination Diameter
Installation :
Warning: Before installation, please make sure the power is turned
off.
Packing information :
Item | Single Box Packing | Carton Package | ||||
| QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | |
CL-C4-30W | 1 pc | / | / | / | / | / |
Warranty :
5-year warranty since the date of purchase is offered for all LED lighting products .
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service under conditions
within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply
with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without
Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the right for final explanation of aforesaid terms.
Caution:GLITTER will not be responsible for any other failure or damage by incorrect usage.
|
|
