Application :

Warehouse,

Display,

Shopping Mall,

Subway station,

Underground Parking,

Corridor,

Exhibition,

Pig farm

Technical information :

A. Technical parameter :

Item No.		PLT-06-18-AB0
Dimension		660X90X88mm
Voltage		AC85V-265V 50/60HZ
Power		18W
LED Type		SMD2835
LED Quantity		60pcs
Luminous Flux	Warm white	≥1760lm
	Neutral white	≥1860lm
	Pure white	≥1960lm
Color Temperature (CCT)	Warm white	2800-3500K
	Neutral white	3800-4500K
	Pure white	5500- 6500K
Beam Angle		170°
Color Rendering Index (CRI)		>80
Power Supply Efficiency		>90%
Luminous Efficiency		110lm/W
Power Factor (PF)		>0.95
Total Harmonic Distortion (THD)		≤15%
IP Rank		IP65
Working temperature		-30~50℃
Certificate		CE, RoHS, SAA, ERP, CB,GS

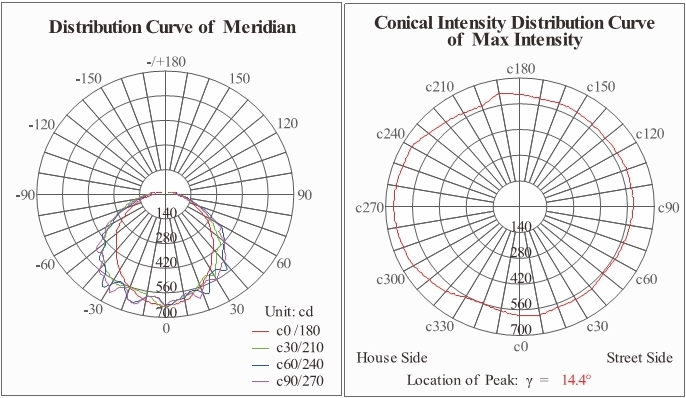

B. IP65 Tri-proof LED light Isolux Curve :

Installation :

3.Install the supplied gland.

4.Connect the AC input wire to fixture terminal block.

5.Clip on the 2 safety wires from the fixture to the metal face plate.

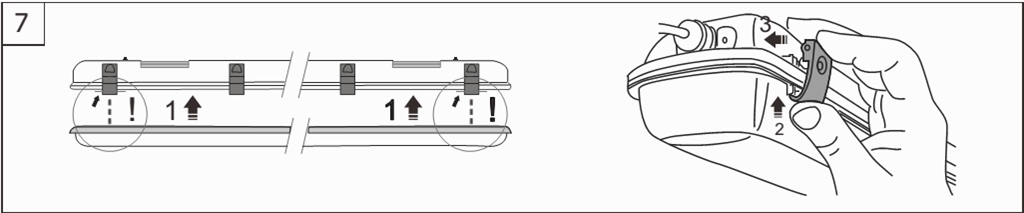

6.Lock the cover with clips to fixture base

Packing Information :

Warranty

5-year warranty since the date of purchase is offered for our 2D Celling Down Light.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the right for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrect usage.
